Life Easy Supply Switch & Charger EMoMo HX90TU2 8 Button Switch For Recliner Lift Chair With USB Type C Charger

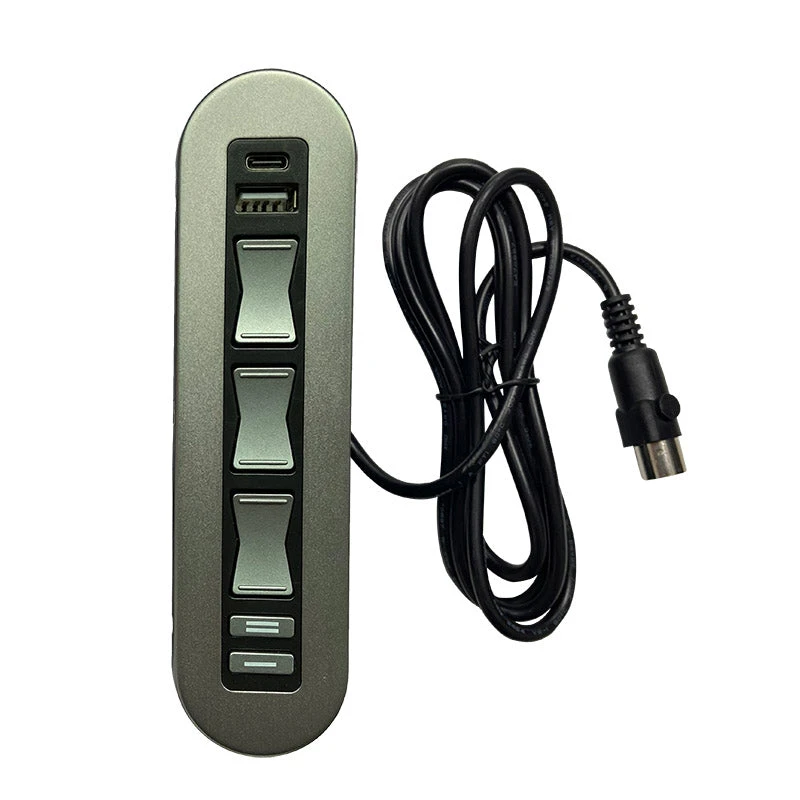

Genuine eMoMo HX90TU2 fixed switch for power recliner or lift chairs.

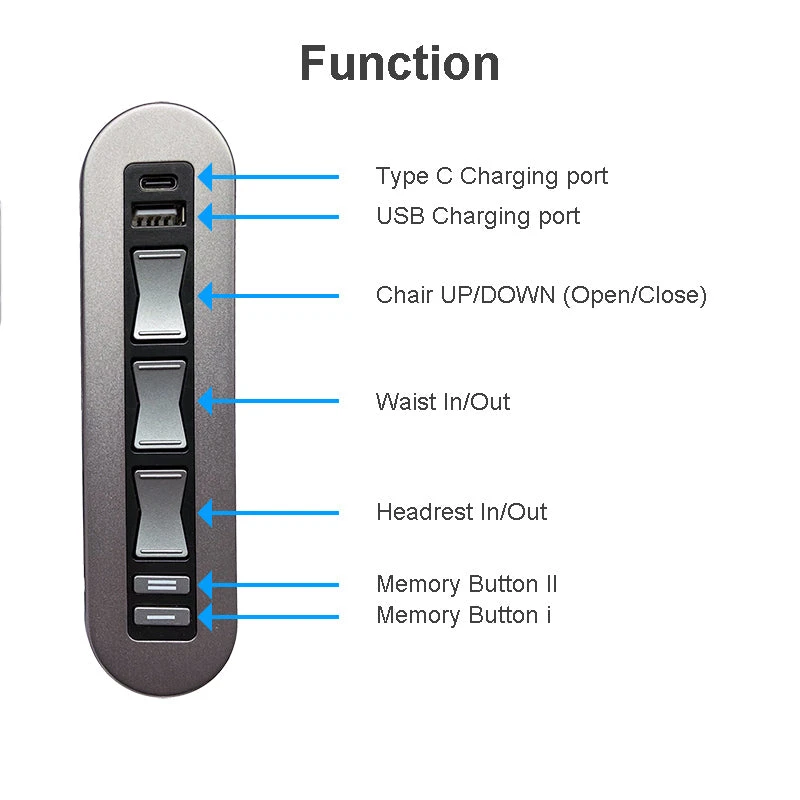

• 8 buttons: Operates 3 motors
• Memory Function: With 2 memory buttons, you can save the favorite position for you and your family, and enter it with a click.
• Type C & USB dual charging port: 5V 2.1A output (total)
• Install screws included

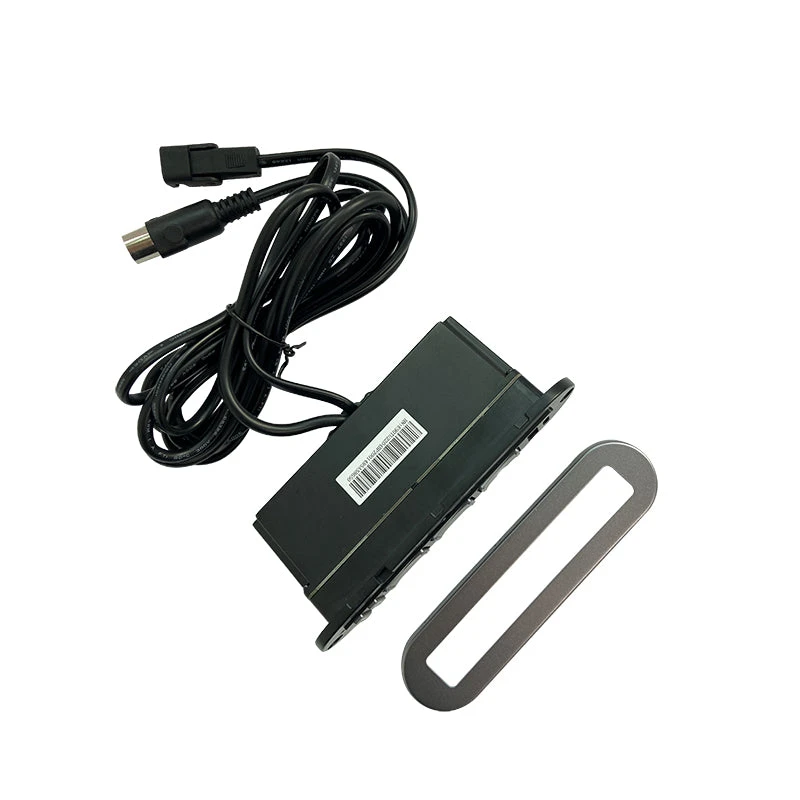

• Front cover shell included.

Please Note:

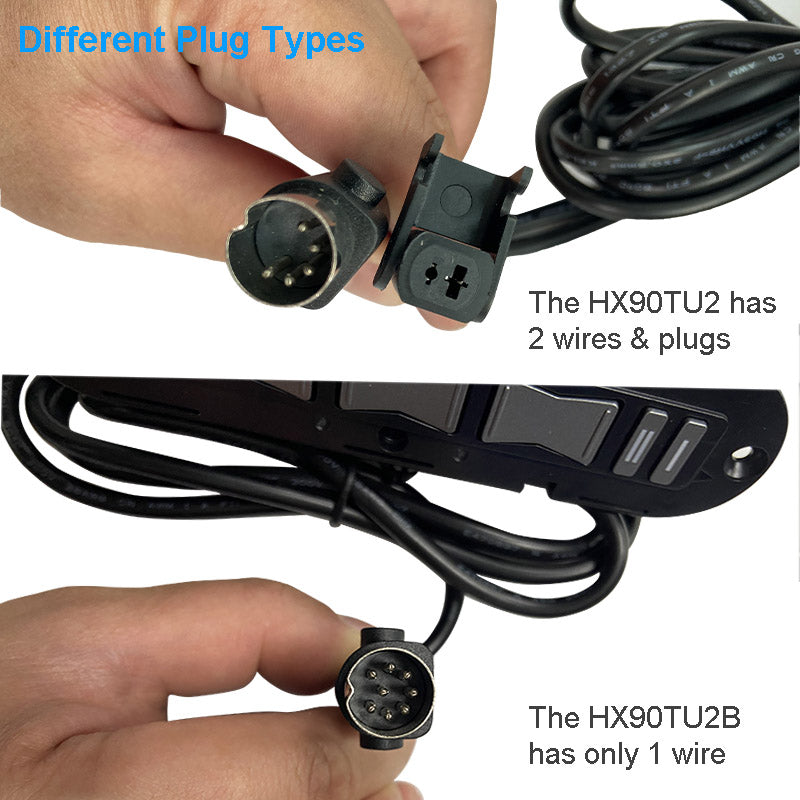

The HX90TU2 switch has two types of connection wires & plugs, please Choose according to your original switch

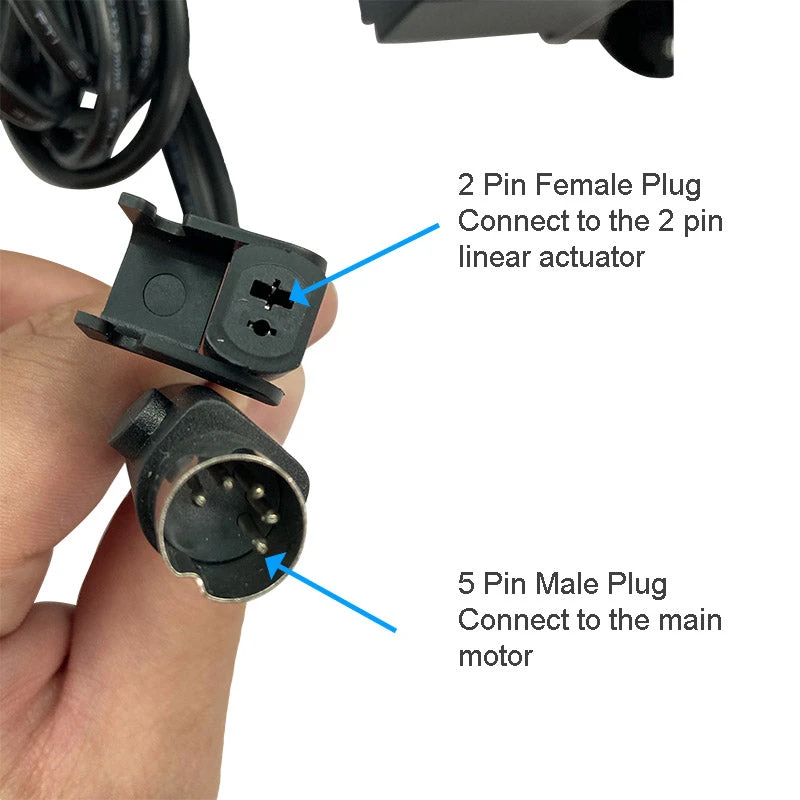

• HX90TU2: 2 wires, one with around 5 pin male plug, connects to the main motor, the other one with a 2 pin female plug, connects to the 2 pin wire motor.
• HX90TU2B: 1 wire, 8 pin round plug

The HX90 switches are available in different versions:

• HX90AFU is the 2-button version, which operates one linear actuator motor, please click here to buy
• HX90HU is the 5-button version, which operates two linear actuator motors, please click here to buy
• HX90TU2 is the 8-button version, which operates three linear actuator motors, you can order it on this page.

Specification:

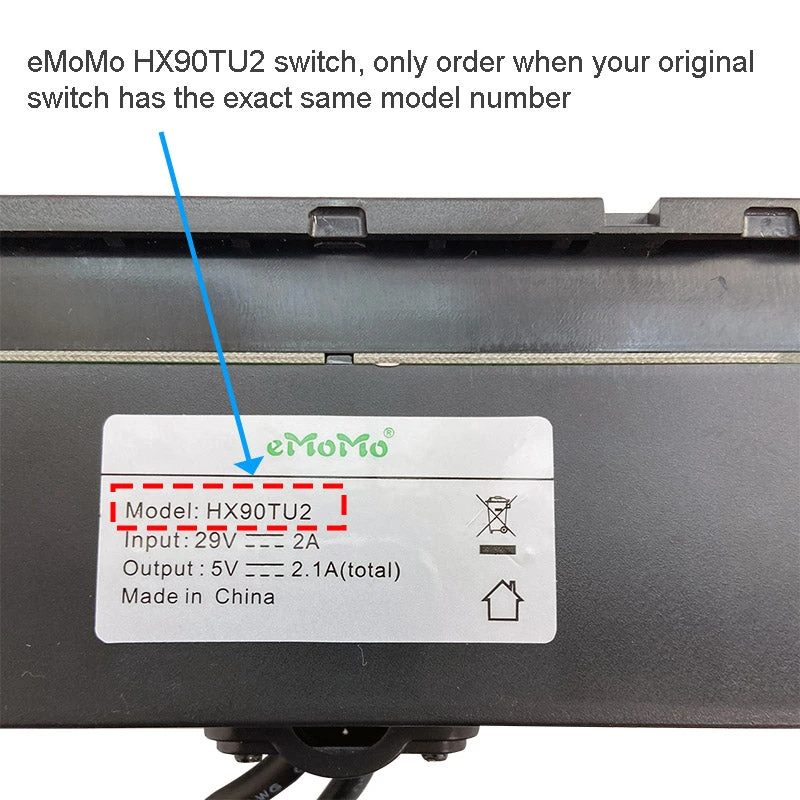

• Model: HX90TU2/HX90TU2B
• Input: 29V 2A
• USB port output: 5V 2.1A (total for USB and type C)
• Wire length: 150cm/59inch

Operation Guide:
1. First thing to do after install
After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.

2. How to memory a position
Adjust the chair to the desired position, long-press the memory button for 2-3 seconds, when you heard a beep sound, the position is memorized.
To reach that position, short press the memory button.
There are two memory buttons, you can save 2 positions separately.

3. Charging port
There are two charging ports, one is USB, the other one is Type C, please choose accordingly. The rated voltage of both ports is 5V.

4. Avoid quick operation of the buttons
When responding to the switching operation, the current is relatively large, which is likely to cause damage to the switch.
